MPN: HMN4084A
Volume Control
16 Channel Selector Knob
Orange Emergency Button
2 Programmable Buttons
Color: Traditional Black

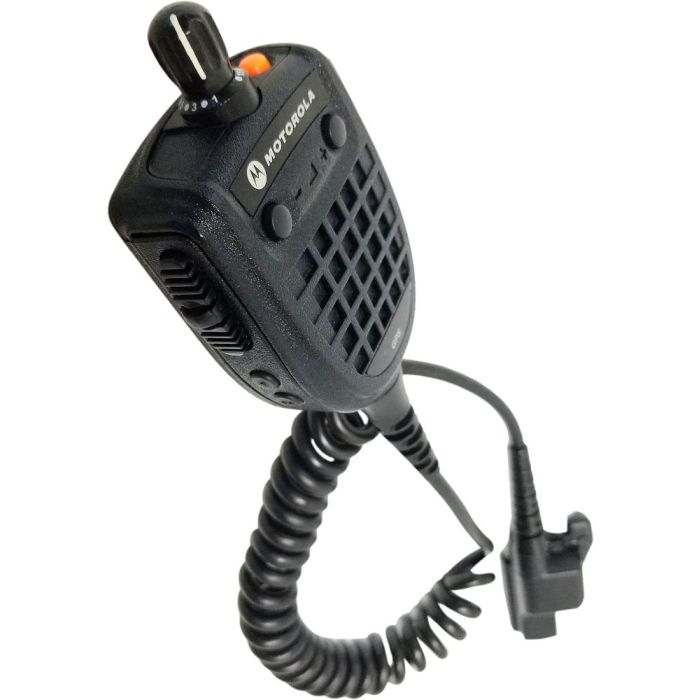

Motorola GPS Remote Speaker Microphone RSM for XTS5000 Two Way Radio
Brand Motorola
MPN HMN4084A
Full Range Pickup Pattern
Clip-On Form Factor
Compatibility
Motorola ASTRO25 Analog Digital XTS5000 Model I, II, III, and Ruggedized Two Way Radios
Emergency Button
2 Programmable Buttons
Full-range Volume Control
Audio Jack on Microphone Head
16-position Channel Selector Knob
Spend more time on mission-critical communications - and less time having to ask “what’s your location?”
Dispatchers can send whomever is closest to each occurrence, reducing response time and improving staff management. In dangerous situations, dispatchers can keep close watch on everyone’s position for greater security - including onfoot patrols and out-of-vehicle officers.
RSM Power Source: Radio Battery
Channel Change Knob: 16 Position
Volume Control: Volume Up/Down Buttons on face of RSM
Side Programmable Buttons: 2, activate side buttons of radio
Orange Emergency Button: Located on top surface, activates radio Emergency Button
Volume Control Levels: Ten levels, maximum to minimum volume; feedback tone when receive audio not present
Global Positioning System GPS
Motorola Remote Speaker Microphones (RSM), XTS5000 portable two-way radio users can be automatically tracked by satellite throughout North America.
The audio jack allows use of discreet audio communication accessories.
Submersible when used with the following ruggedized radio models: XTS 5000R Ruggedized Models I and III
Supports the following GPS position update triggers to the Radio User: Local Position Update
Location information can be shown to the user on the radio display. Requires the XTS 5000 (Model lI or III).
Supports the following GPS position update triggers to the Dispatcher:
Radio User Initiated
Emergency Alarm Location Request
Location Request Upon Radio Power-On
Emergency Push-to-Talk Location Request
Note:
Requires an ASTRO 25 Integrated Voice and Data System with components including:
Astro Presence Notifier Application (RVN4198)
Astro Location Application Developers Kit (RVN5030)
A Location Application that supports Motorola's Location Request / Response Protocol (LRRP) and interfaces to Motorola's Presence Notifier Application in order to obtain location data from the radio.
GPS Global Positioning System
Simultaneous Satellites: 12
Autonomous Non Assisted GPS
Integrated PIFI style GPS Antenna
Motorola HMN4084A GPS Remote Speaker Microphone with Audio Jack Compatible with Motorola Earpieces.
XTS5000 radios must have a radio host code of R06.01.00 or later.
What's included?
Motorola HMN4084A GPS RSM (Remote Speaker Microphone). See Pictures!
MPN: HMN4084A
PID:1801876212
Connectivity: 3.5 mm
Form Factor: Clip-On
Type: Microphone RSM
Pickup Pattern: Full Range
Compatible Brand: For Motorola
Features: Volume controls, Channel Monitor, Water Resistant, Built-in Headphone Jack
Interested? Please read description thoroughly, ask questions before purchasing.
Don't see it in picture(s)? Not included with purchase.
| Condition | Used |
|---|---|
| Manufacturer | Motorola |
| MPN | HMN4084A |
| Type | Accessory |
